Circuit Breaker Main Disconnect, 250A, 230V, 480V, 600V, Nema 4
Stock:
In Stock
Nema 4 Steel Enclosure, Service Rated with UL489 circuit breaker. Lug Sizes are limited - please see description. Options for Service Equipment Labeling, shunt trip, and Wye service.
Read the descripton fully. Picture may vary from specifications.

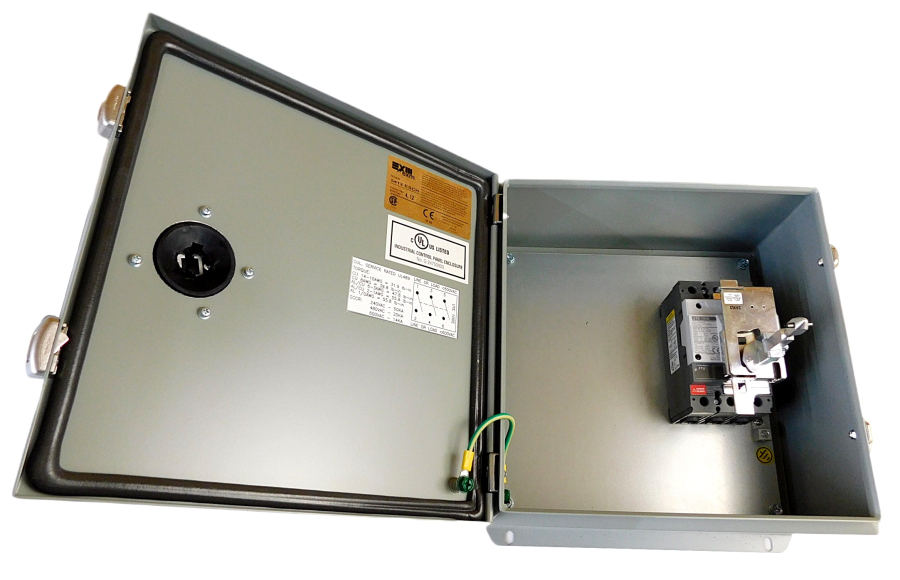

250A circuit breaker main with door mounted handle.
Meets requirement for dead front service equipment by utilizing the door mounted handle.
When tripped, handle indicates mid position.
UL 489 type breaker, UTS250 Frame, N series
Fixed Thermal and Magnetic trip.
3 pole unit, suitable for 208 - 600VAC.

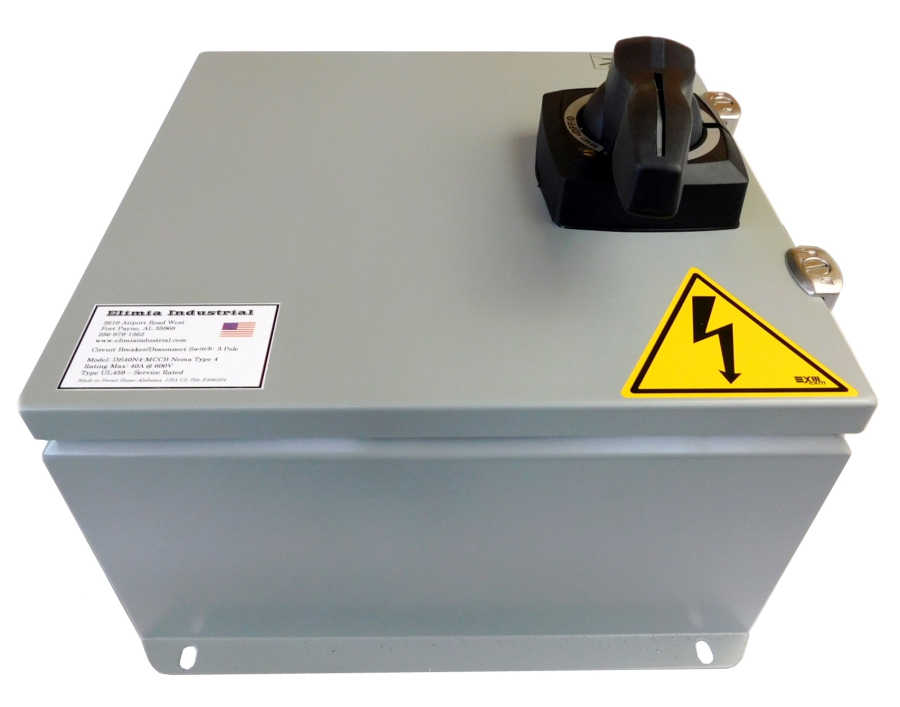

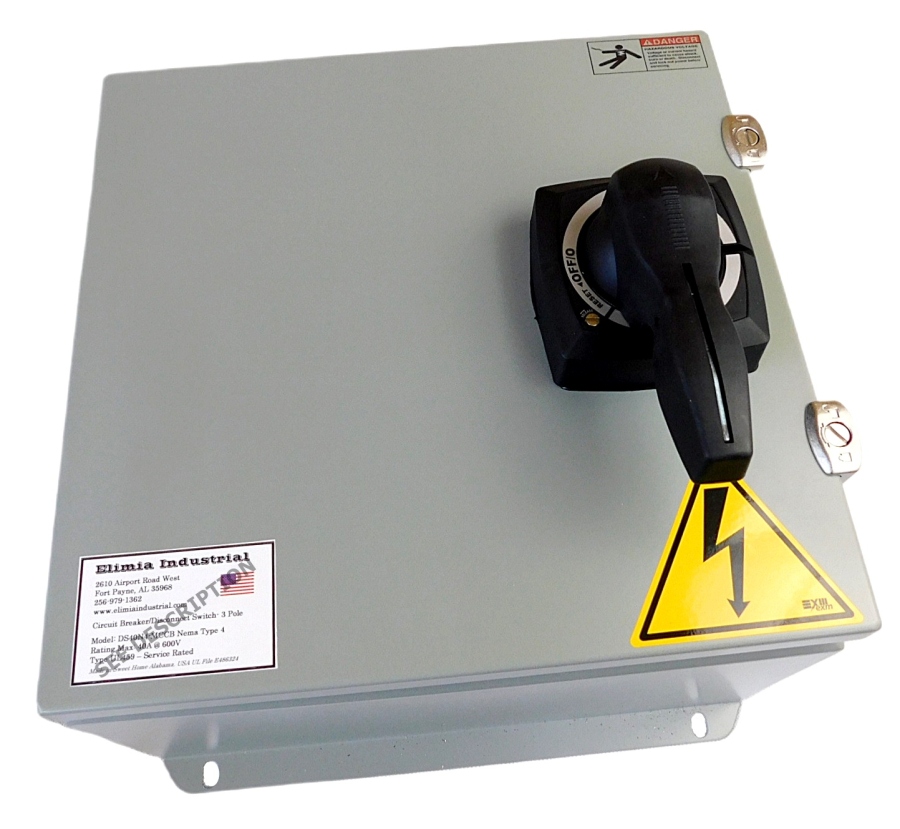

The Rotary Handle meets requirments of OSHA to Lock out and Tag out the equipment servicing.
All units unless noted are certified UL and labeled.
Specifications:
- Enclosure - Nema 4 Steel, approximate size 20x20x8 (options for larger enclosures)
- 250A (fixed) at 208-600VAC
- Lug in - Lug out, max 300MCM
- UL 489 rated
- Standard SCCR 65KA @ 240V; 35KA @ 480V; 18KA @ 600Y
- Ground: Mechanical Lug(s)
Contact us if you have any questions - 256-979-1362
