5 HP 480V Combination Motor Controller w/MCCB, Nema 4X, Push Button Controls
Stock:
In Stock
Type C Motor Control Panel
Standard units include a MCCB current limiting circuit breaker disconnect with a standard 25KA rating
Lots of options can be added to customize to your needs.
Push Button controls wired in a latching configuration.
Read the descripton fully. Picture may vary from specifications.

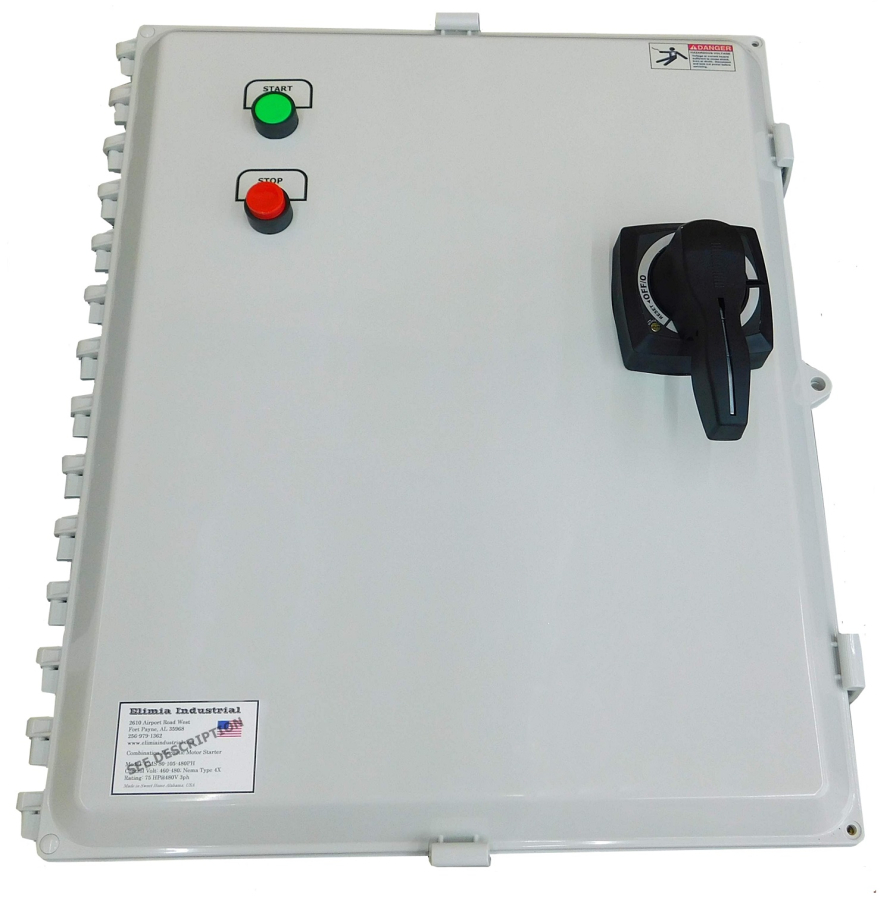

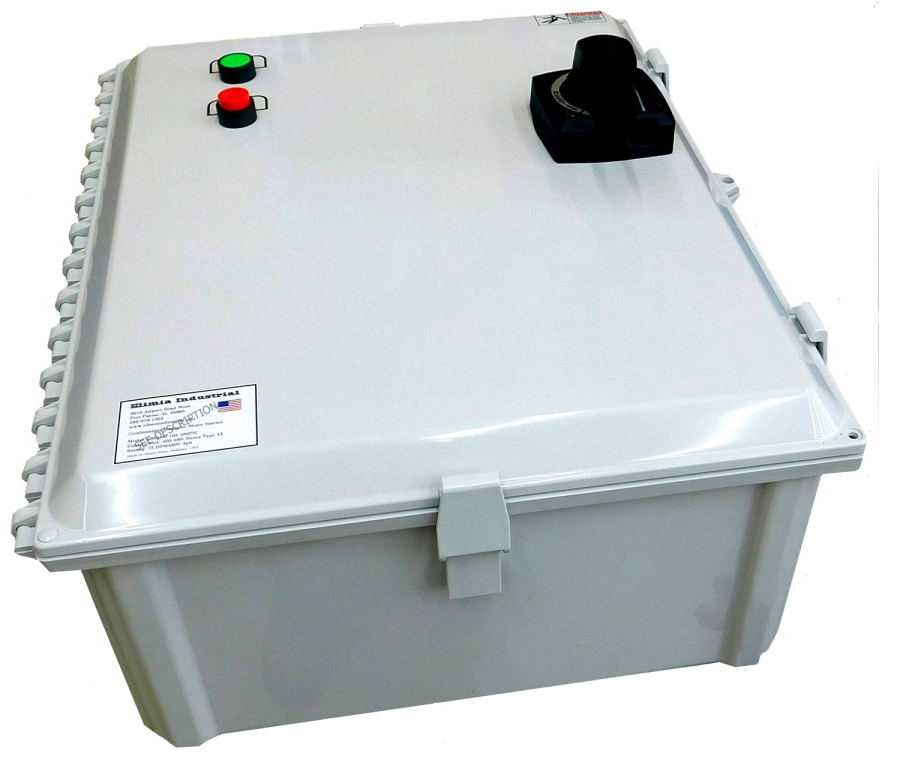

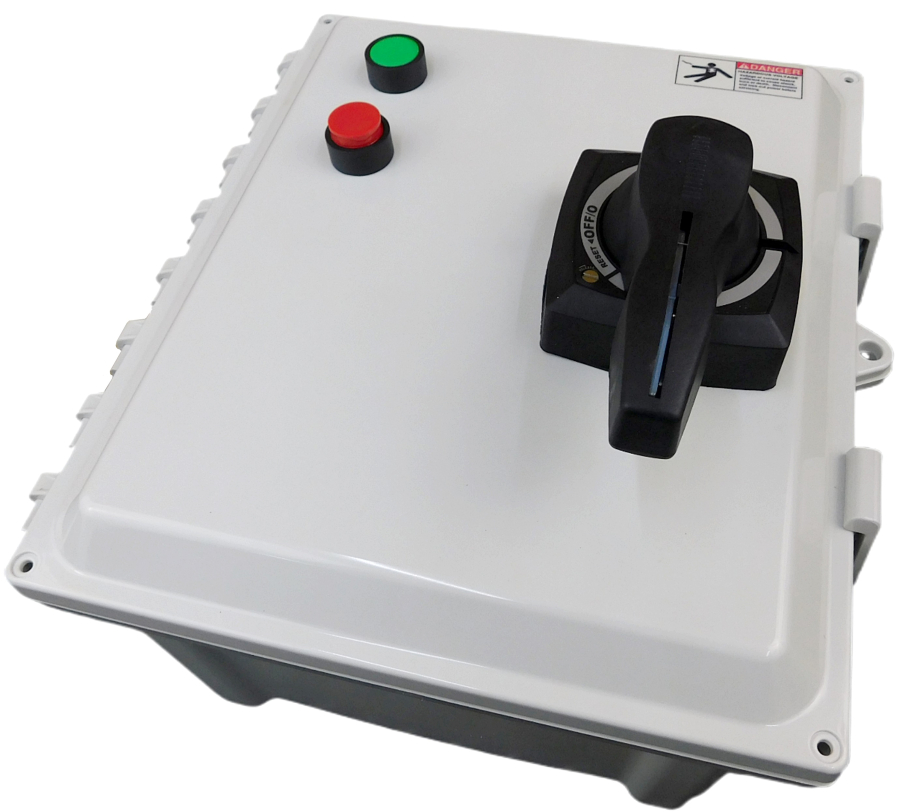

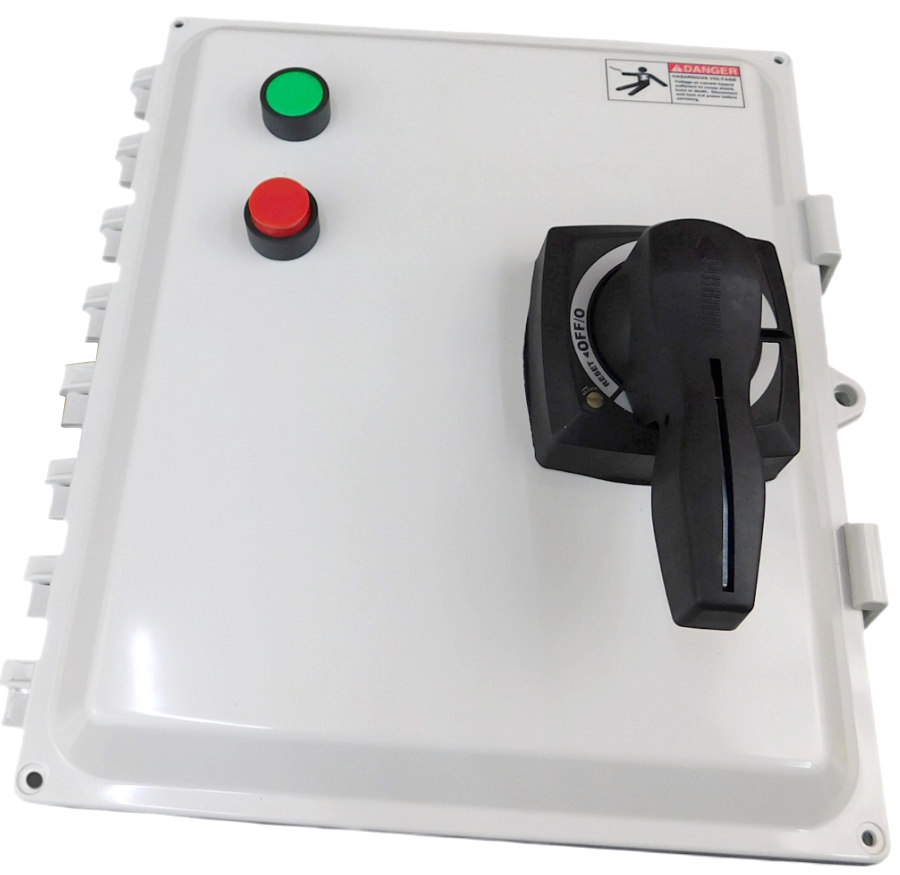

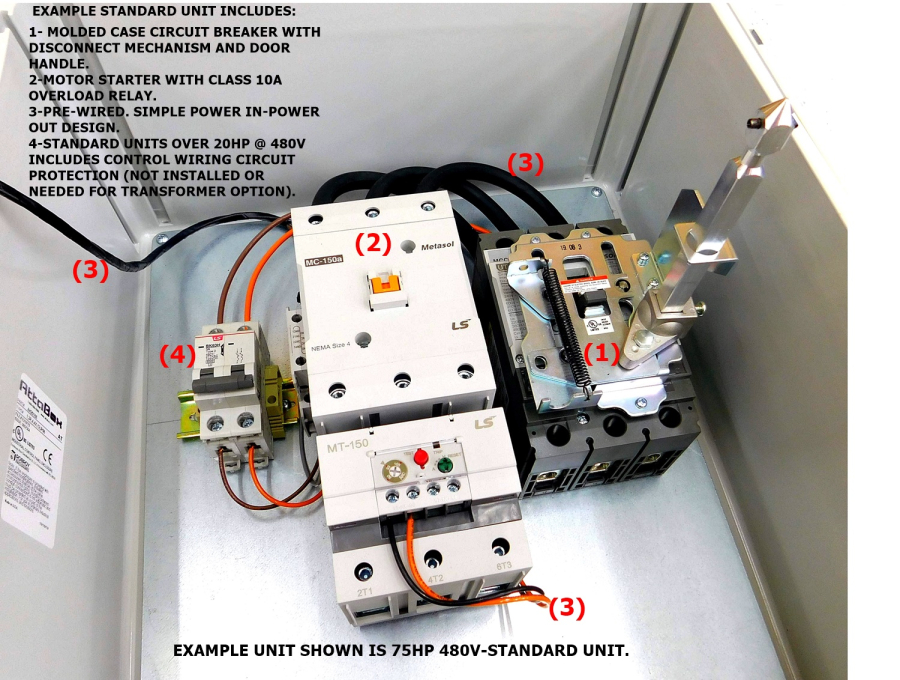

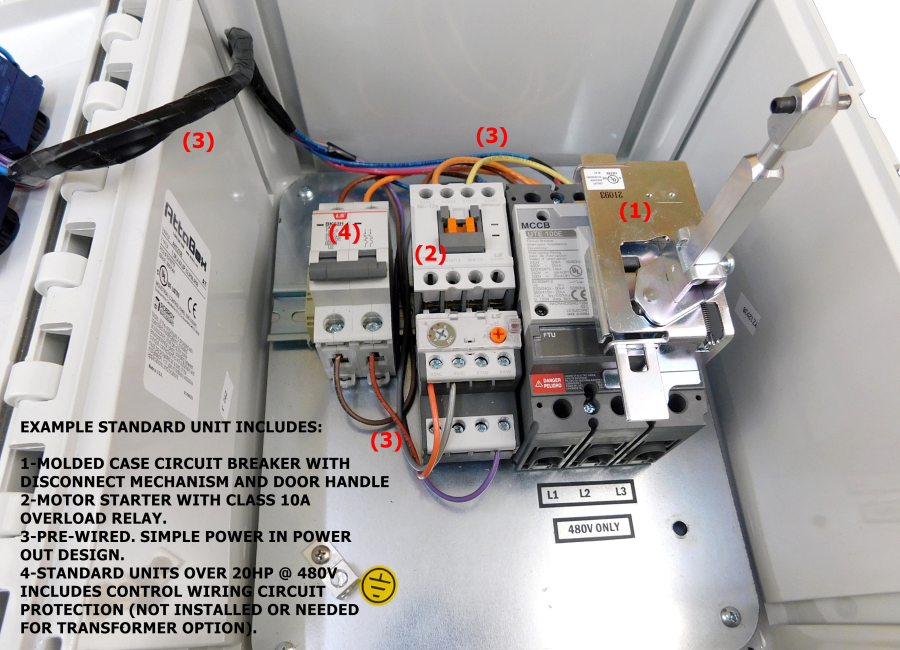

Complete enclosed motor starter control panel with Molded Case Circuit Breaker with integrated disconnnect and door mounted handle.
Meets requirements for a local disconnect with lock out handle.
Heavy duty Nema 4X Polycarbonate enclosure, made in USA, with latches.

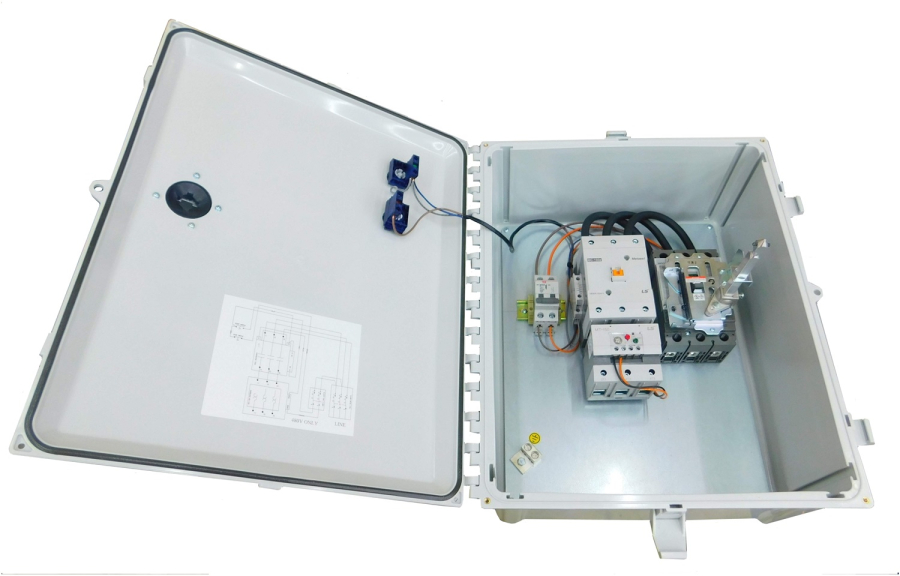

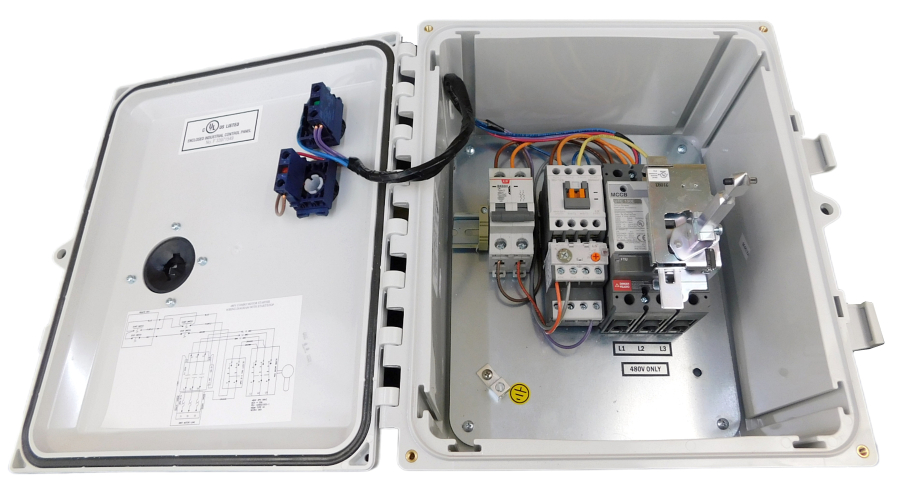

Pre-wired for easy installation. Just bring power in and power out to your motor load.
Push Button type controls are set up in a latching wiring configuration and provide the preferred operation for most equipment. This type of control drops out during a power loss or power blink and requires restarting once power returns. This is a safety feature and is required for some types of equipment where a automatic restart after power returns would be dangerous. For equipment such as Air Compressors or Pumps that run automatically based on a limit switch - this type of push button controls are not compatible. Please contact use for control options or view other categories such as HOA type.
Current limiting molded case circuit breakers (MCCB) provide additional short circuit protection not always found with fuses or other breakers. Current limiting devices provide protection for all components "downstream" by rapidly breaking current flow when a fault occurs. Current limiting protection allows for the entire control panel to be rated with the short circuit current rating (SCCR) of the MCCB by protecting components with a lower KA rating of the MCCB. In this control panel the standard SCCR rating is 25KA. Elimia offers higher KA rated control panels however lead time and cost are affected.
Standard Unit Specifications:
- Enclosure - Polycarbonate Nema 4X, 12x10x6
- Motor Starter - Nema size 0, IEC size 12
- Coil Voltage is common to supply Voltage - see options
- Contactor HP rating UL - 7.5 HP @ 480V
- Overload trip range - 6-9 Amps
- Sized for Normal loaded 5 HP @ 480V
- Main Disconnect MCCB- 20 Amp with a 25KA rating, door mounted handle, lock out-tag out
- Controls - Push Button Start and Stop, latching configuration
- UL508A certified
Sized for Normal loaded 5 HP @ 480V
Contact us if you have any questions - 256-979-1362
