1 HP 230V 3PH Enclosed Motor Starter w/ Main Disconnect, Nema 4X HOA 120V Controls
Stock:
In Stock
Combines a motor starter and disconnect in one easy to install control panel.
Lots of options can be added to customize to your needs.
HOA type controls are commonly used for motors that run automatically from a remote switch closing.
Read the descripton fully. Picture may vary from specifications.

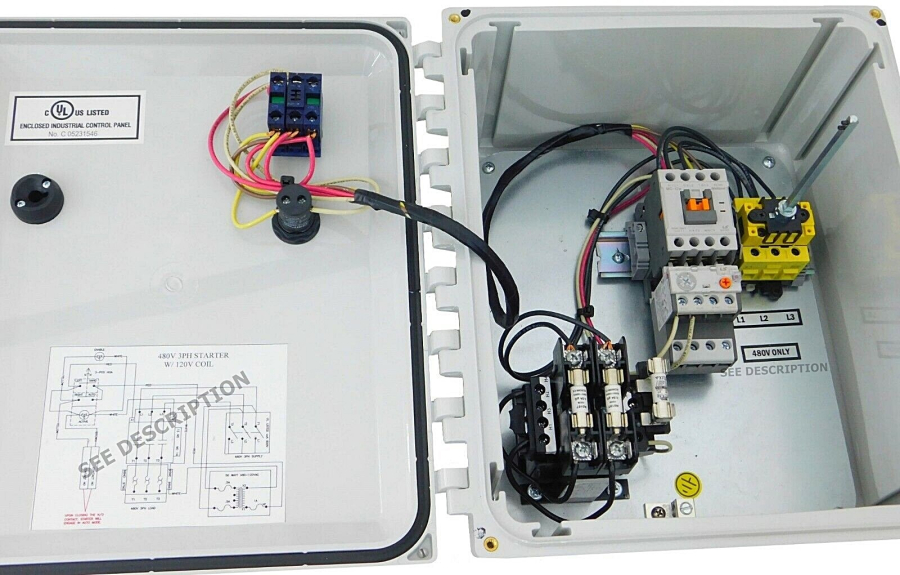

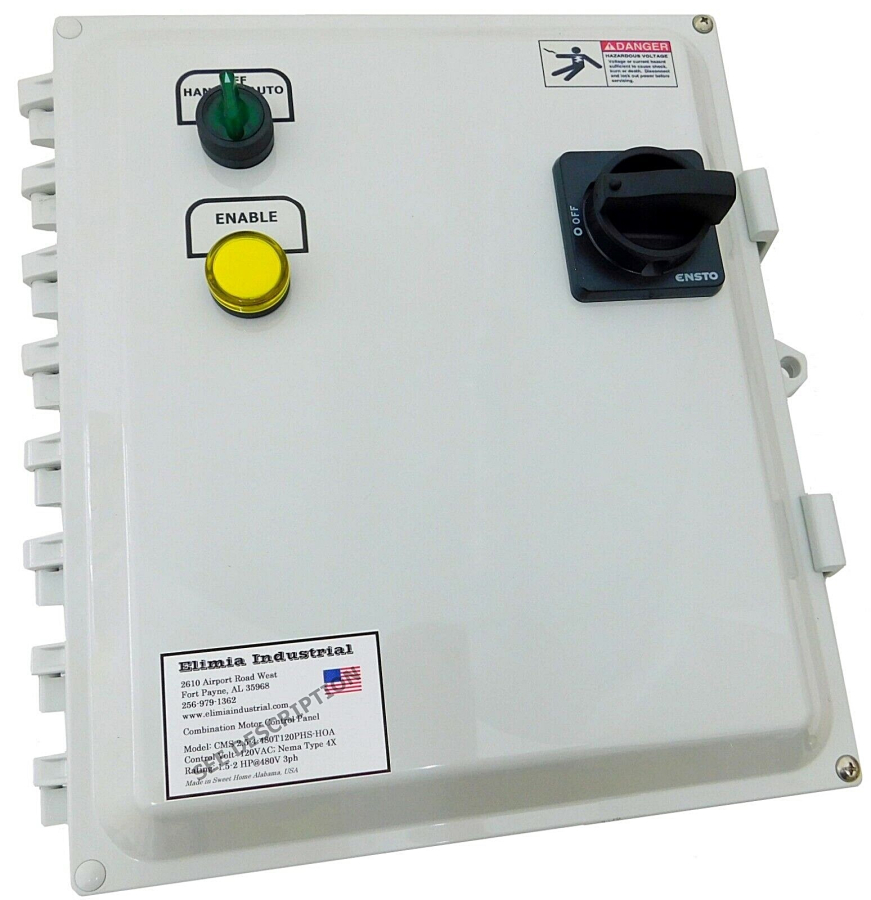

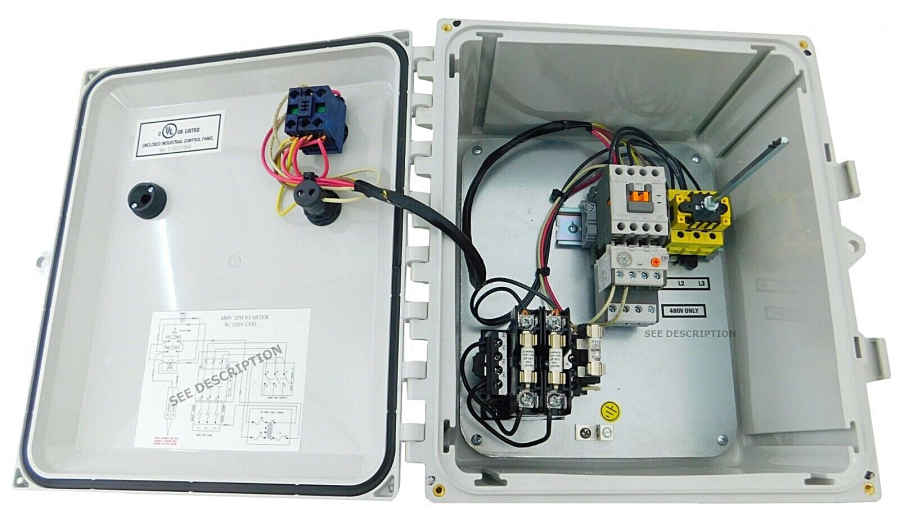

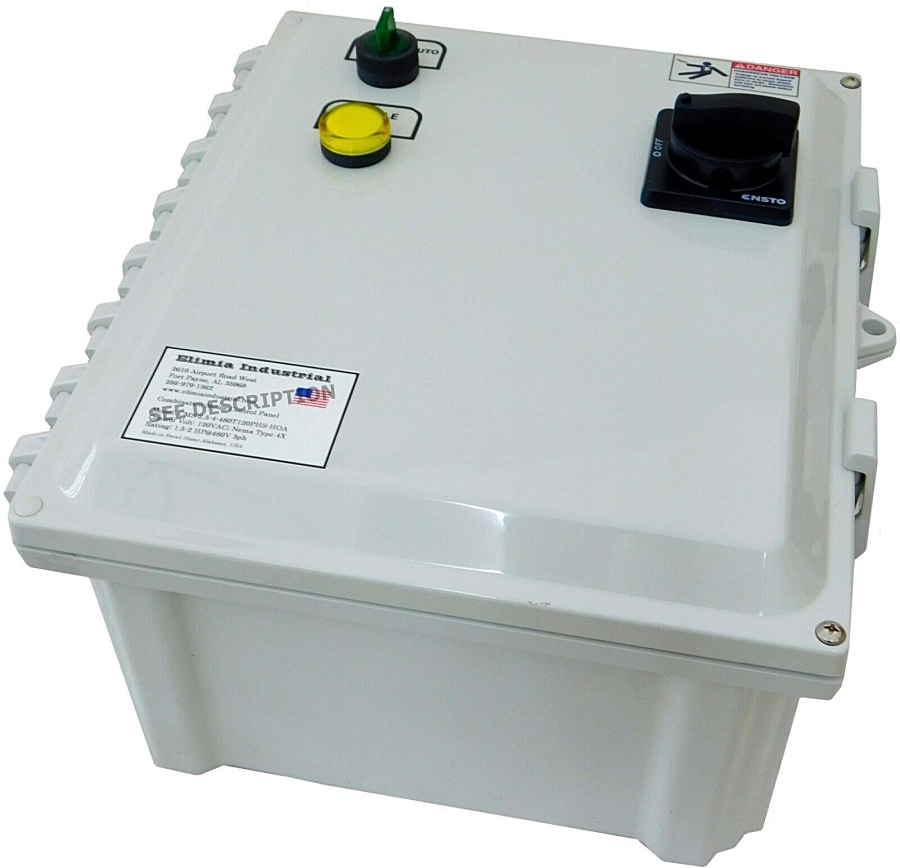

Complete enclosed motor starter control panel with main disconnect.
Meets requirements for a local disconnect with lock out handle.
Heavy duty Polycarbonate enclosure with latches.
Pre-wired for easy installation.
Be sure to select your main Voltage, standard is 230V, 208V is optional.
HOA type controls provide for both manual and automatic operation. Standard set up for auto is RUN when remote switch closes while in Auto mode.
Example of HOA application: A Fan motor that needs to run when the temperature is above a certain point. If you wanted a Fan to automatically run at 70 degrees or higher you would use a thermostat that has a set of contacts that are open below 70 and closed above 70. There will be two wires stubbed from our control panel that are extended and ran to the thermostat contacts. If the control panel's HOA switch is in the Auto position and the thermostat is above 70 degrees, the fan motor will run and remain running until the temperature reaches below 70 degrees and the thermostat contacts open. The fan would continue to run and stop based on the temperature above or below 70 until the HOA switch is moved to Off. Numerous similar applications apply. The H position is known as Hand. In Hand position the Fan would run continuously regardless of the temperature switch.
Note: These type of controls are NOT suitable for motors that would result in a dangerous situation from reactivating if mains power returned after a power outage. Example would be a table saw or machine where the user could be hurt by moving parts.
Specifications:
- Enclosure - Polycarbonate Nema 4X, 12x10x6
- Motor Starter - Nema size 00, IEC size 9
- Coil - 120V Control Voltage, sourced from inside the enclosure by transformer
- Contactor HP rating UL - 2 HP @ 230V
- Overload trip range - 4 - 6 Amps
- Sized for Normal loaded 1 HP @ 208-230V 3PH
- Main Disconnect - 25 Amp UL508 with door mounted handle, lock out-tag out
- Controls - 3 Position maintained type with A600 contacts
- UL508A certified
Sized for Normal loaded 1 HP @ 208-230V Motor, 3PH, 120V Controls
Contact us if you have any questions - 256-979-1362
