1 HP 208-230V Economy Enclosed Motor Starter, Nema 4X, Push Button

Read the descripton fully. Picture may vary from specifications.

Complete enclosed motor starter.

All units unless noted are certified UL 508A and labeled.

Nema 1 Steel base with Poly screw on cover.

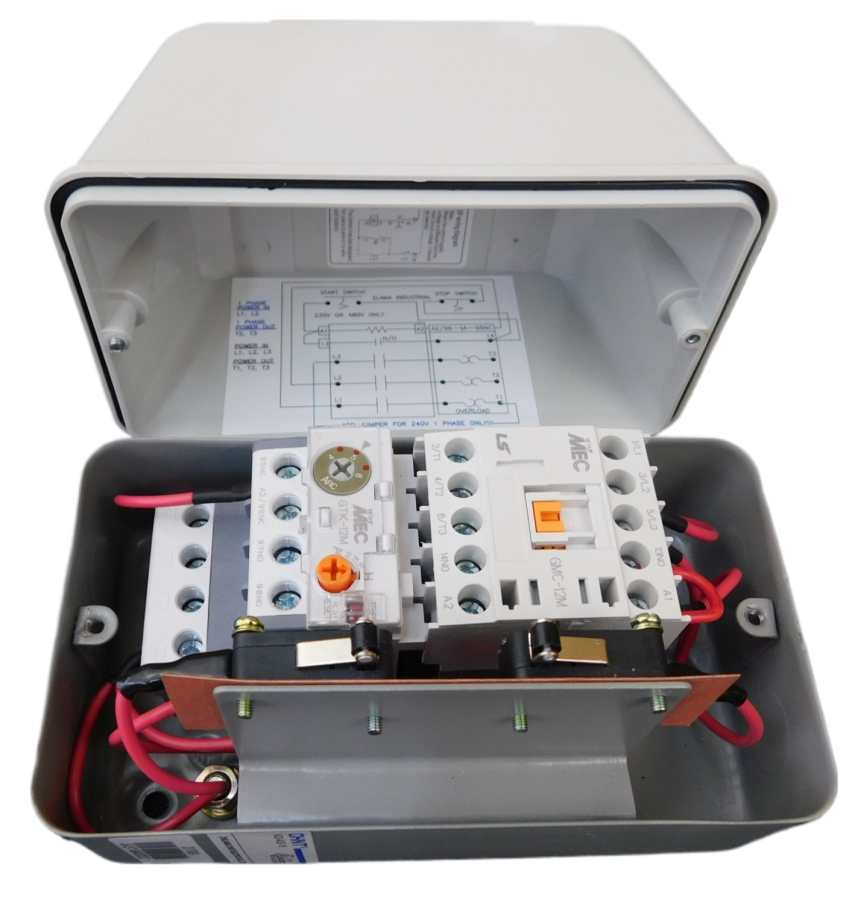

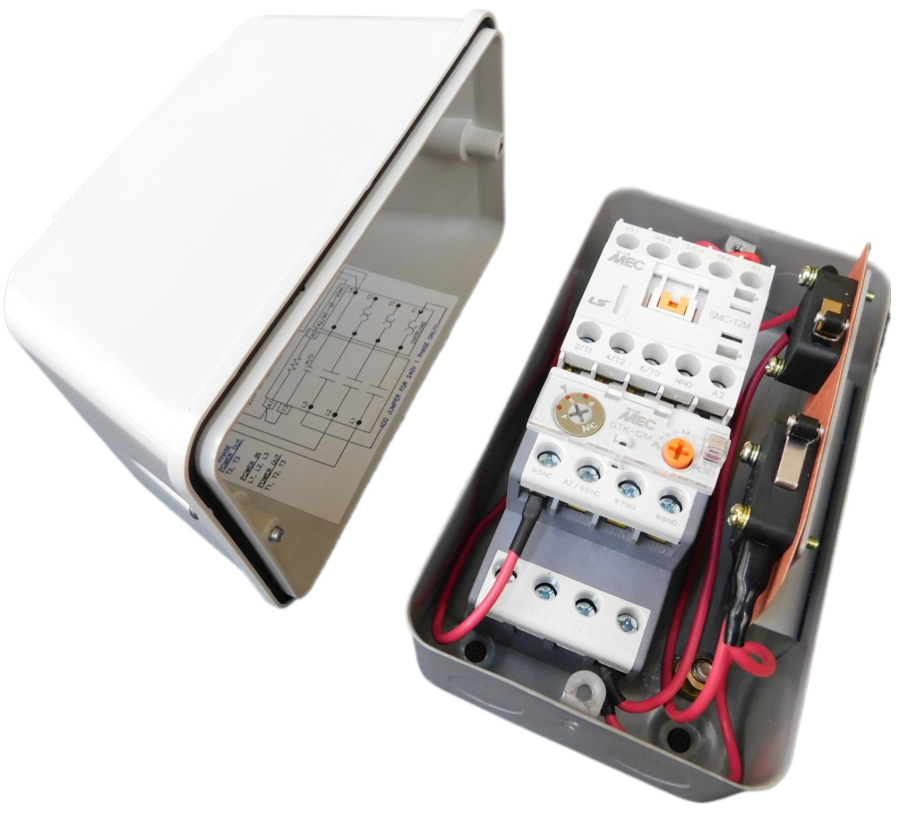

Pre-wired for easy installation.

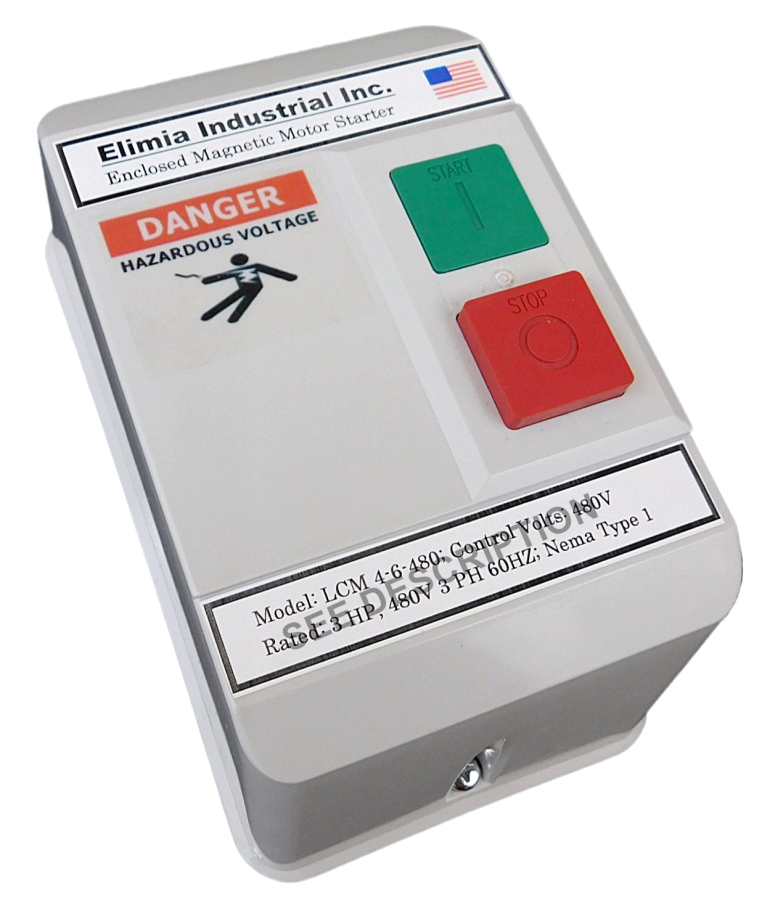

Momentary push button controls wired for auxiliary latching. Latch releases from stop button or loss of power.

Note: These type of controls are NOT suitable for air compressors or equipment using remote limit switches. See ACMS or HOA models for those type controls.

Specifications:

• Enclosure - Nema 1, 6-5/8 x 3-7/8 x 4-5/8

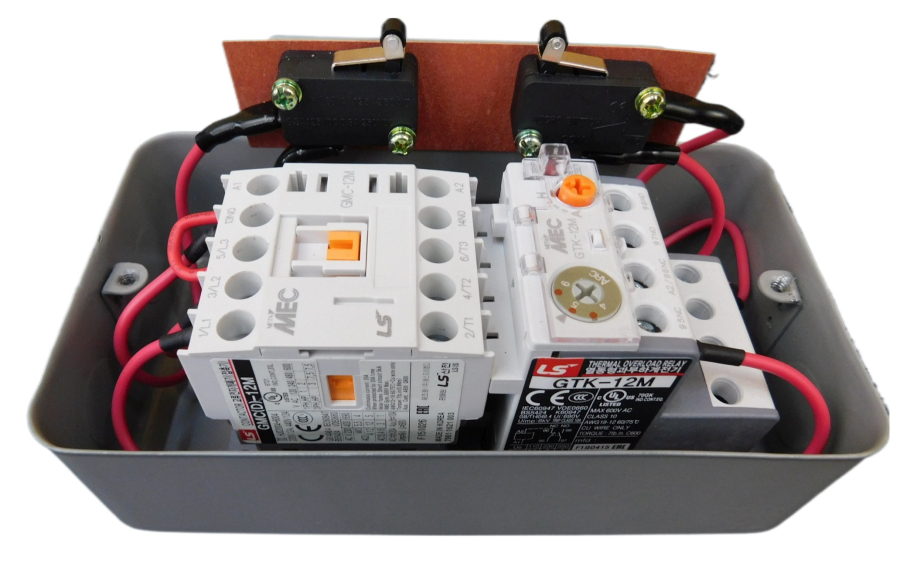

• Motor Starter - Mini Size GMC 12
• Coil - 240V Control Voltage
• Contactor HP rating UL - 3 HP @ 230V, 3PH
• Overload trip range - 4 - 6 Amps
• Sized for Normal loaded 1 HP @ 208-230V, 3PH
• Controls - Momentary push buttons with A600 contacts
• UL508A certified

Sized for Normal loaded 1 HP @ 208-230V Motor, 3PH, 208-240 Controls

Contact us if you have any questions - 256-979-1362
