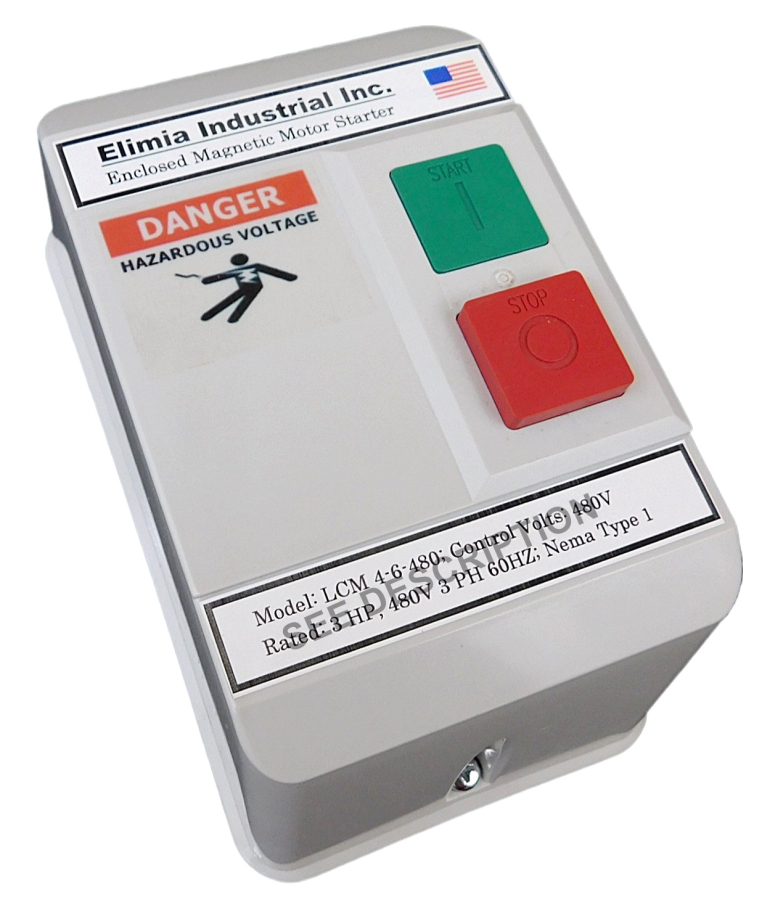

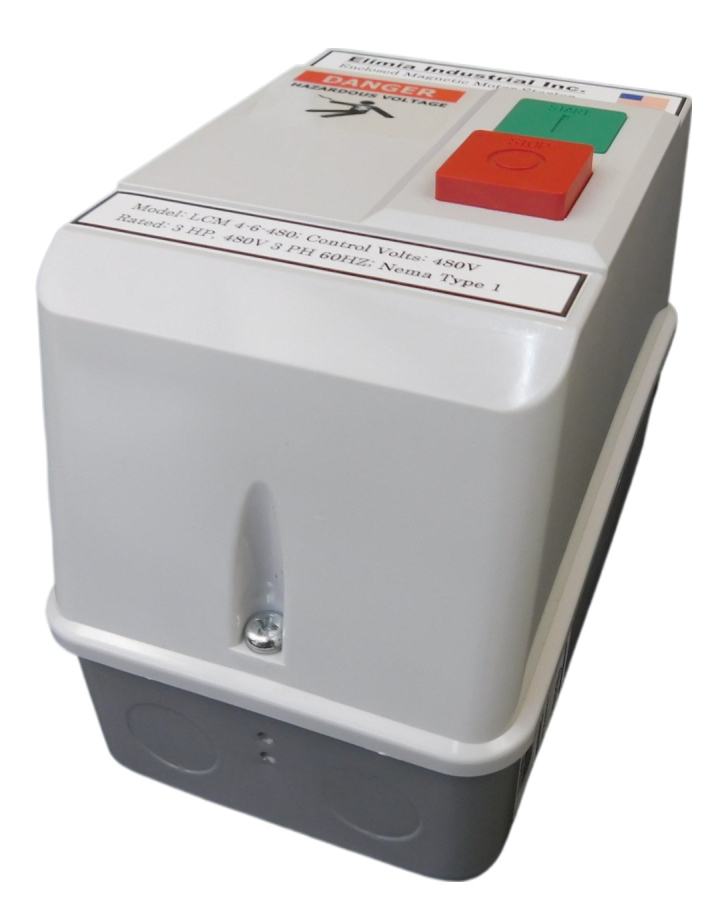

1 HP 480V Economy Enclosed Motor Starter, Nema 4X, Push Button

0 Review(s)
Stock:
In Stock
Pre-wired motor starter with push button controls in a Nema 1 compact enclosure.
$85.00
Lights:
E-Stop:
Control Voltage:

Read the descripton fully. Picture may vary from specifications.

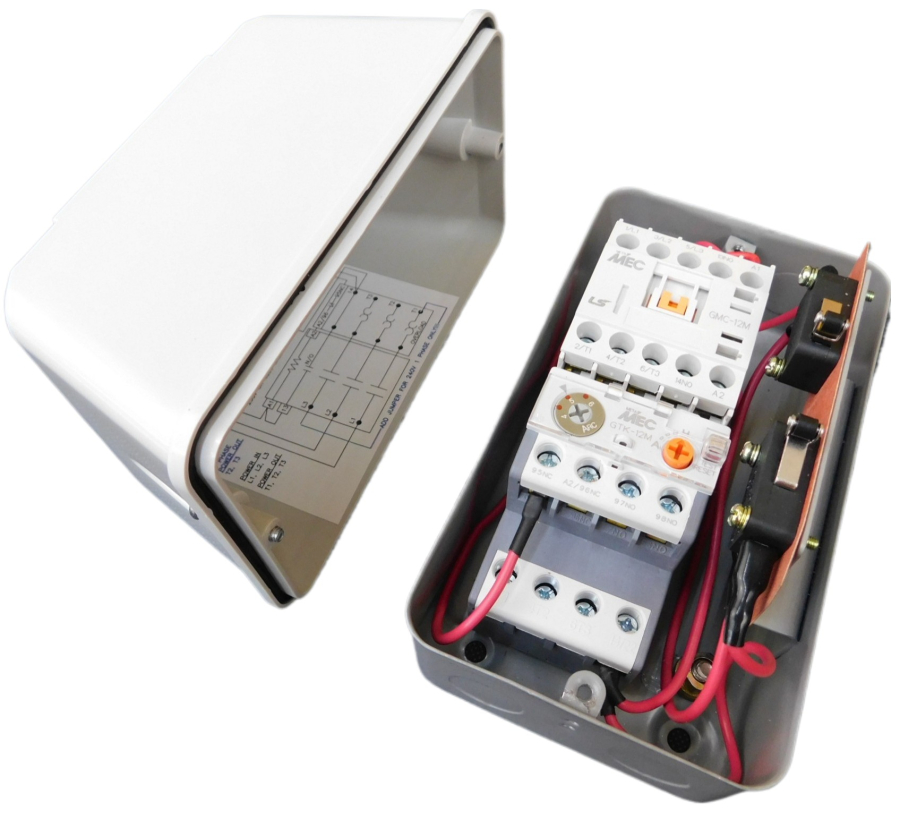

Complete enclosed motor starter.

All units unless noted are certified UL 508A and labeled.

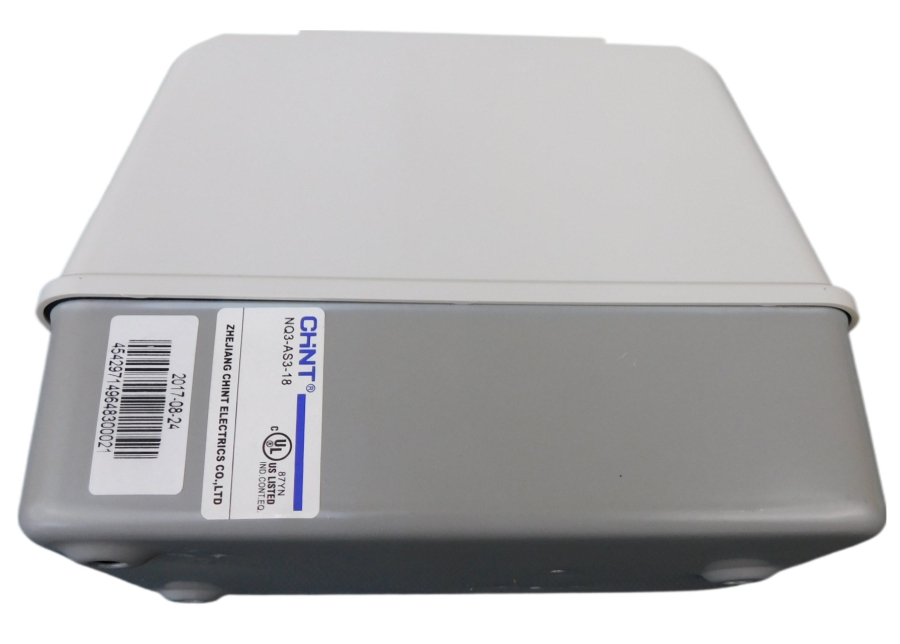

Nema 1 Steel base with Poly screw on cover.

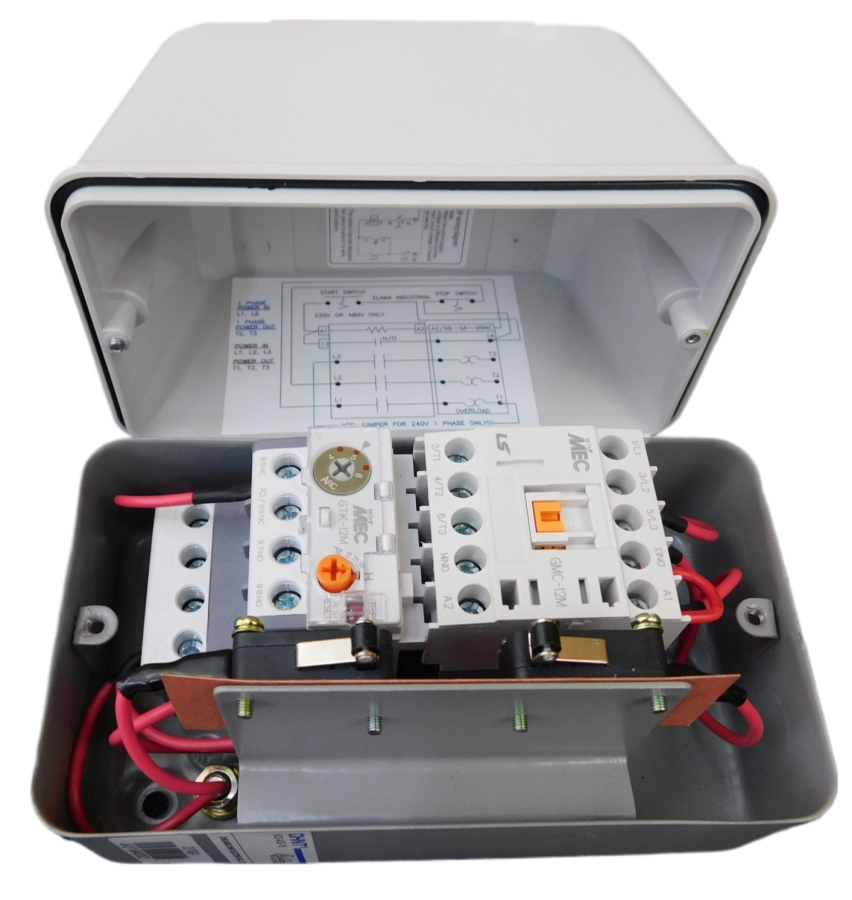

Pre-wired for easy installation.

Momentary push button controls wired for auxiliary latching. Latch releases from stop button or loss of power.

Note: These type of controls are NOT suitable for air compressors or equipment using remote limit switches. See ACMS or HOA models for those type controls.

Specifications:

  • Enclosure - Nema 1, 6-5/8 x 3-7/8 x 4-5/8

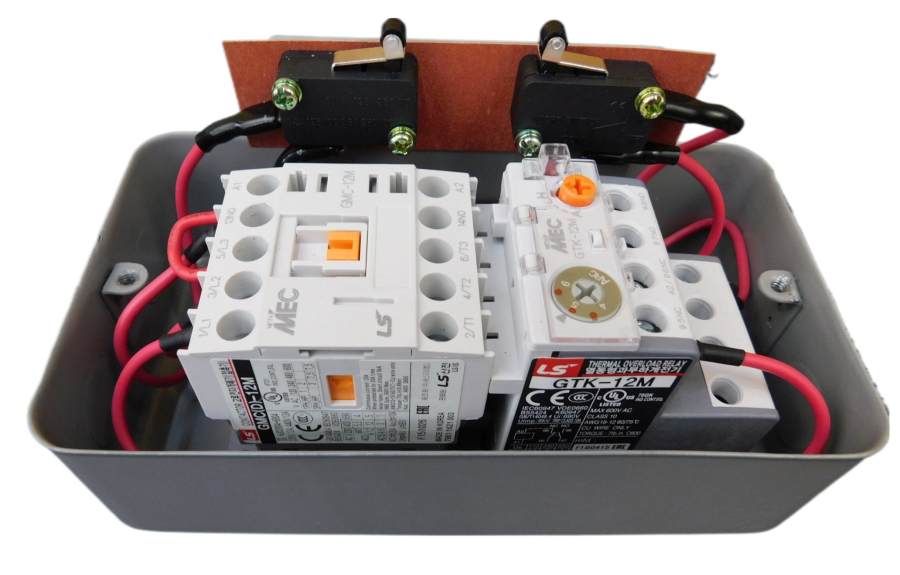

  • Motor Starter - Mini Size GMC 12
  • Coil - 480V Control Voltage
  • Contactor HP rating UL - 7.5 HP @ 480V, 3PH
  • Overload trip range - 1.6 - 2.5 Amps
  • Sized for Normal loaded 1 HP @ 480V, 3PH
  • Controls - Momentary push buttons with A600 contacts
  • UL508A certified

Sized for Normal loaded 1 HP @ 480V Motor, 3PH, 480V Controls

Contact us if you have any questions - 256-979-1362
