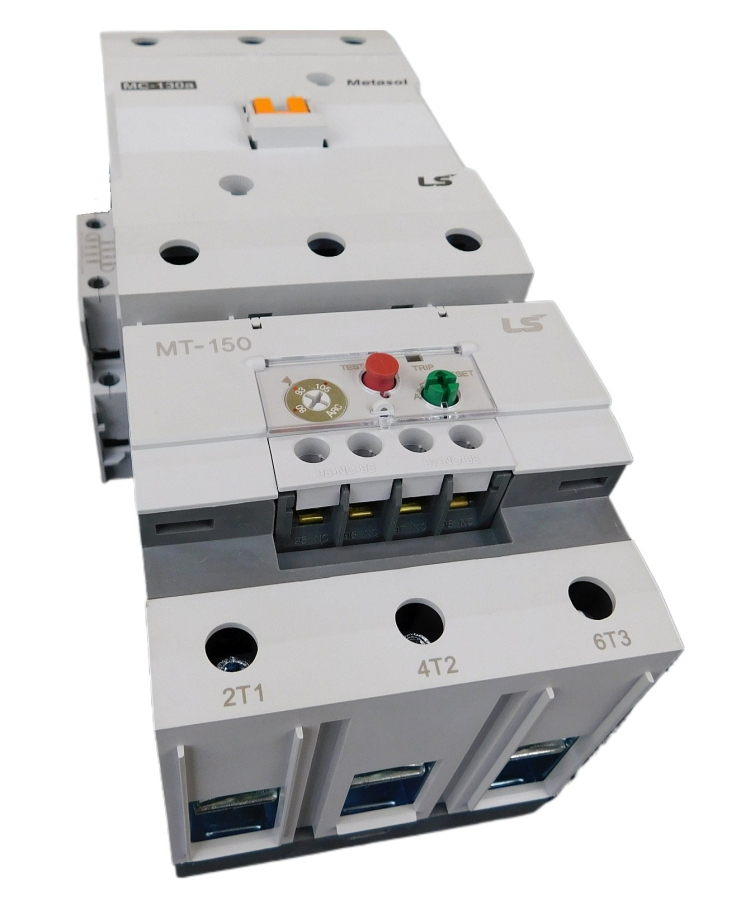

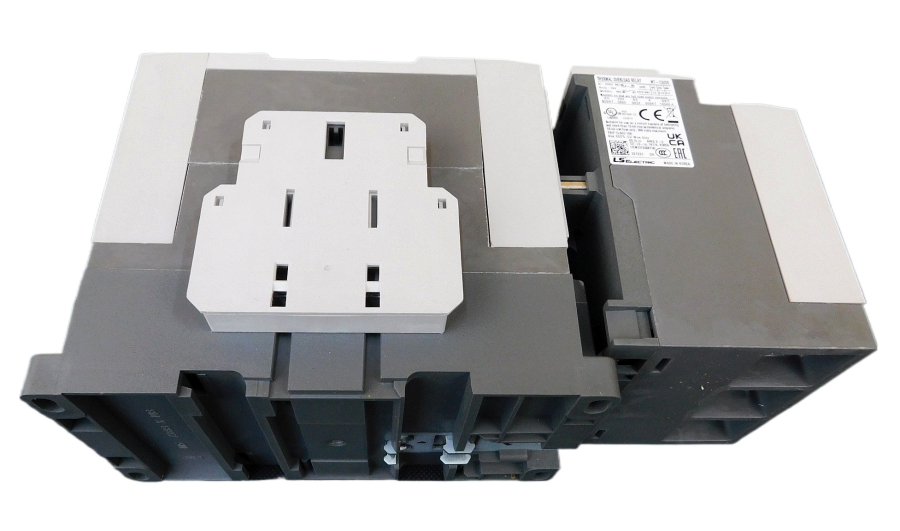

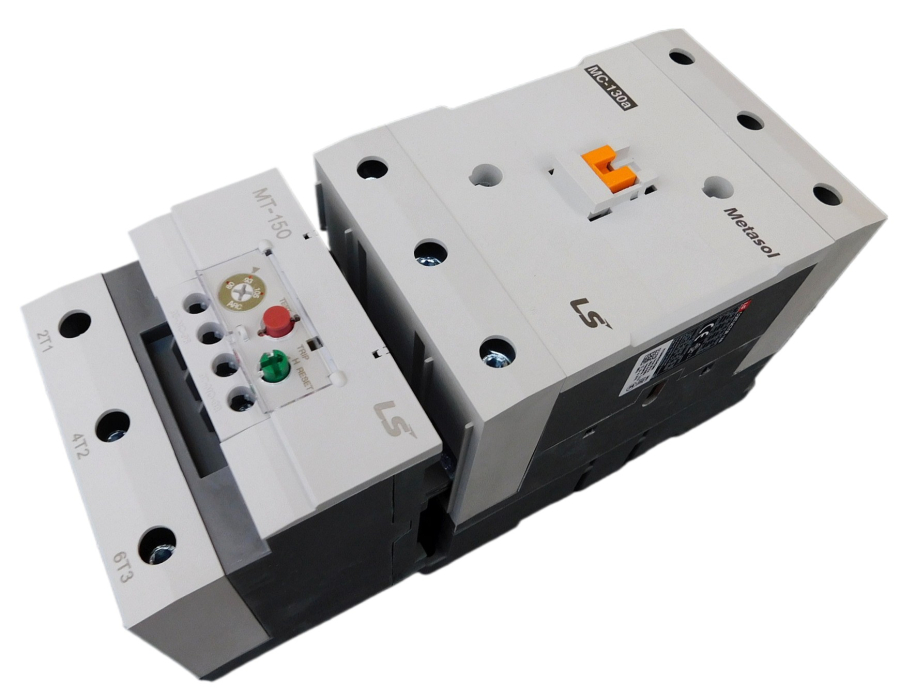

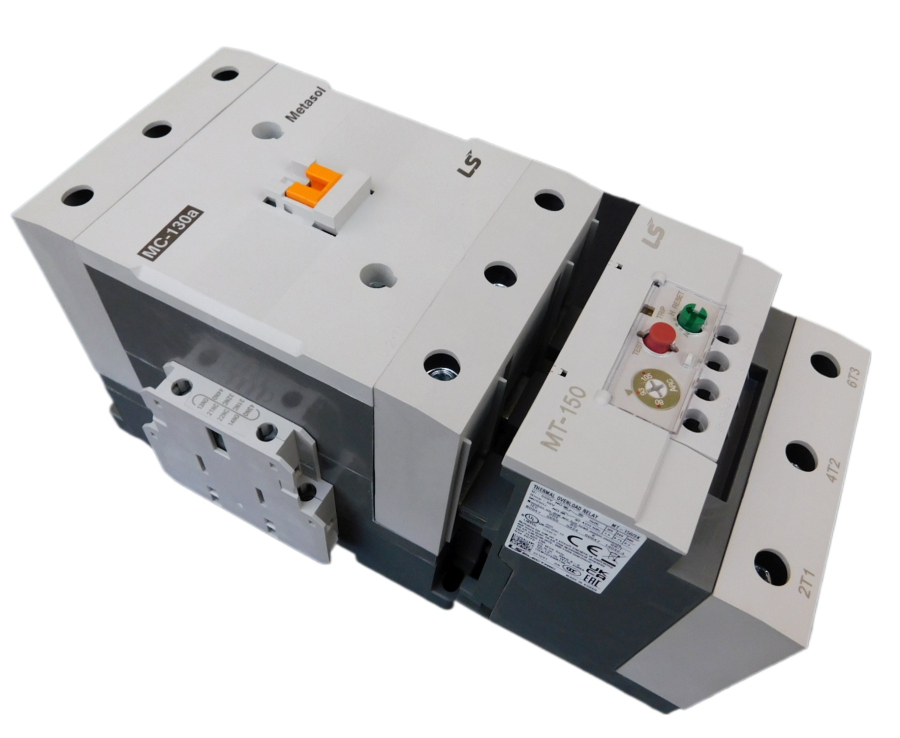

Motor Starter, 80-105 Amp, 120V Coil, 30HP 208V, IEC Size 130
Stock:
In Stock
Complete motor starter sized for Normal or Heavy loaded 30HP at 208V. Operating Voltage is 120VAC.
Contactor, IEC size 130. Overload Frame size 150. Heavy duty set up. Elimia PN: 80-105-120-130
Complete motor starter sized for a Normal or Heavy loaded 30HP at 208V. Operating Voltage is 120VAC.
The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.
Shipped as two separate devices, contactor and overload.
LSis brand, made in Korea

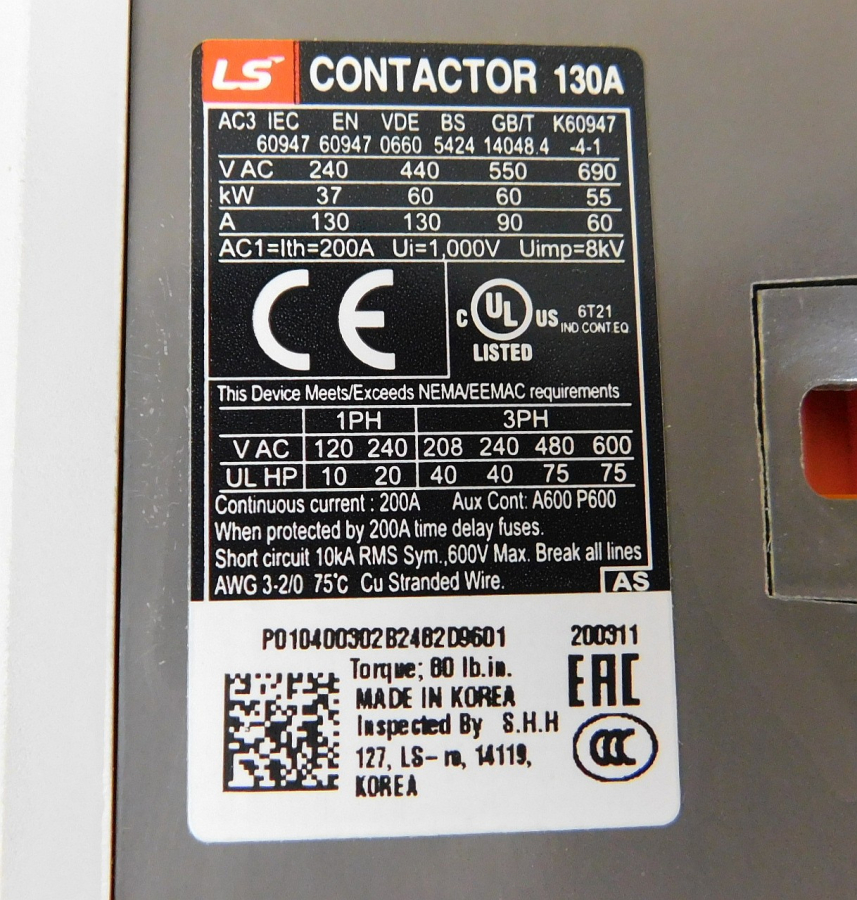

- Contactor - IEC size 130
- Overload - Class 10 differential type, phase failure protection
- Coil - 120V
- Contactor HP rating UL - 40HP @ 208-230V, 3PH
- Overload trip range - 80-105 Amps
- Sized for Normal or Heavy loaded 30HP at 208V
- Includes (1) N/O & (1) N/C auxiliary contact
- Overload Frame size 150
