Motor Starter, 22-32 Amp, 120V Coil, 10HP 230V, 3PH, Nema Size 2, IEC Size 40
Stock:
In Stock

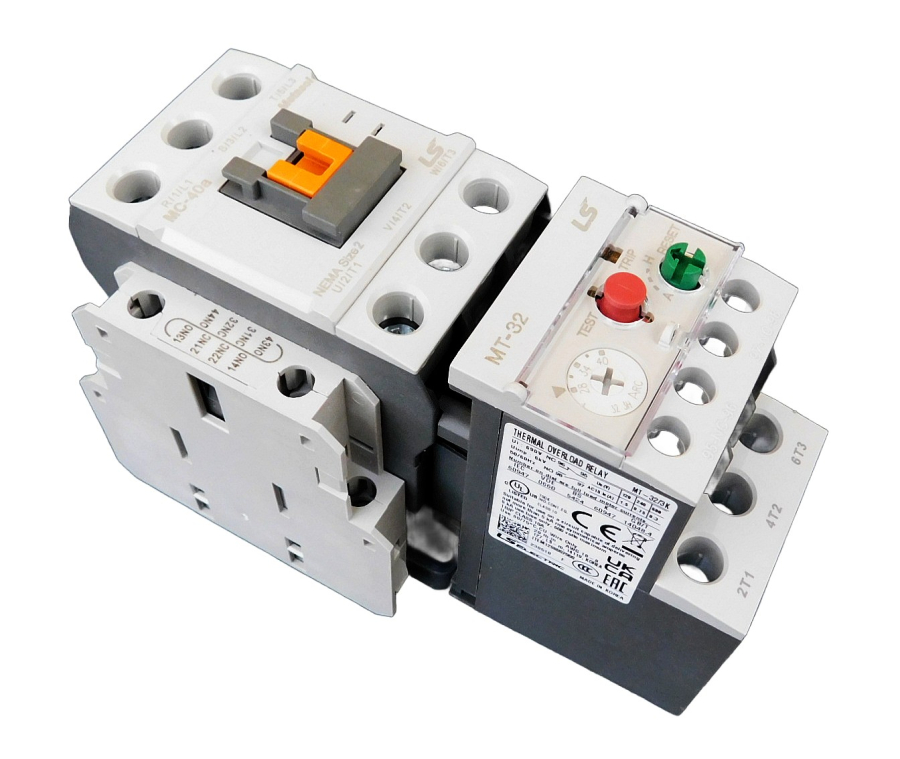

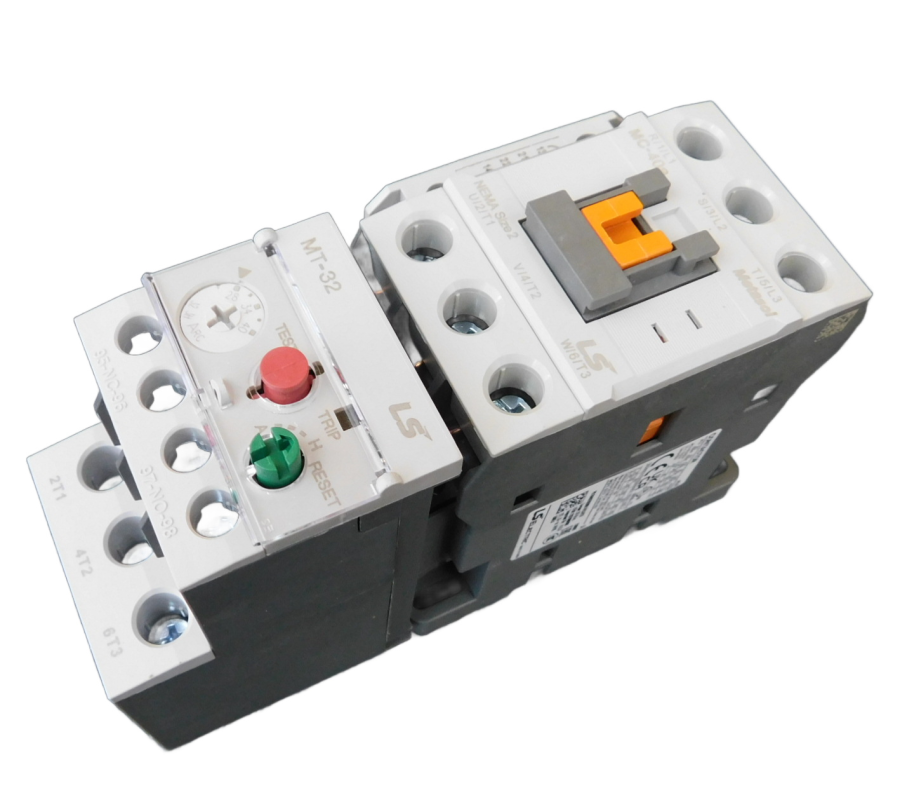

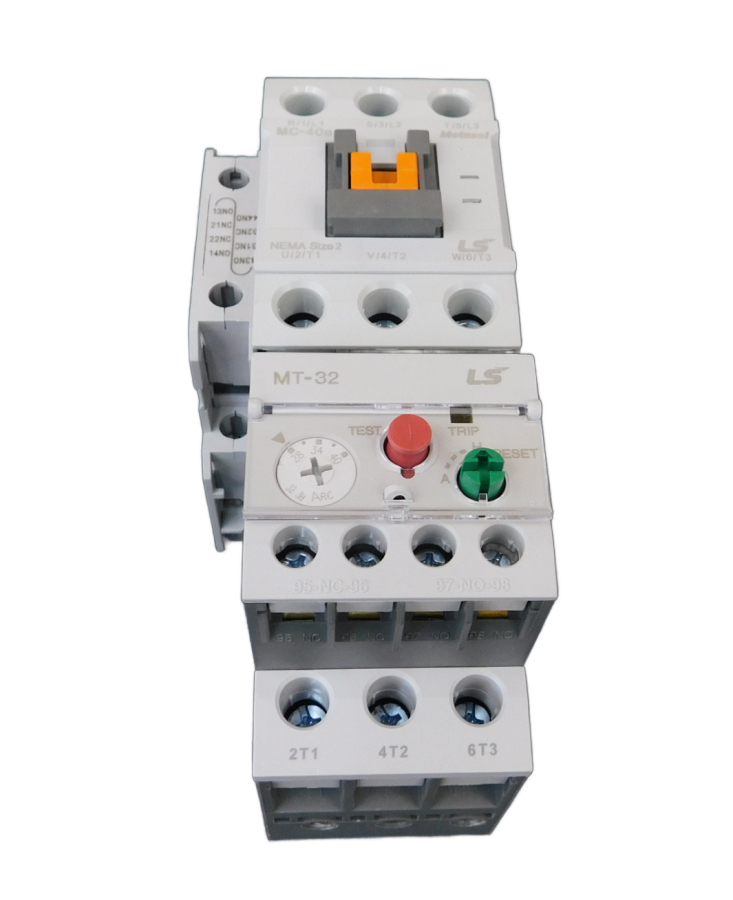

Complete motor starter sized for Normal or Heavy loaded 10HP at 230V, 3PH. Operating Voltage is 120VAC
Contactor, Nema Size 2, IEC Size 40. Overload Frame size 32. Heavy duty set up. Elimia PN: 22-32-120-40
Complete motor starter sized for a Normal or Heavy loaded 10HP at 230V, 3PH. Operating Voltage is 120VAC.
The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

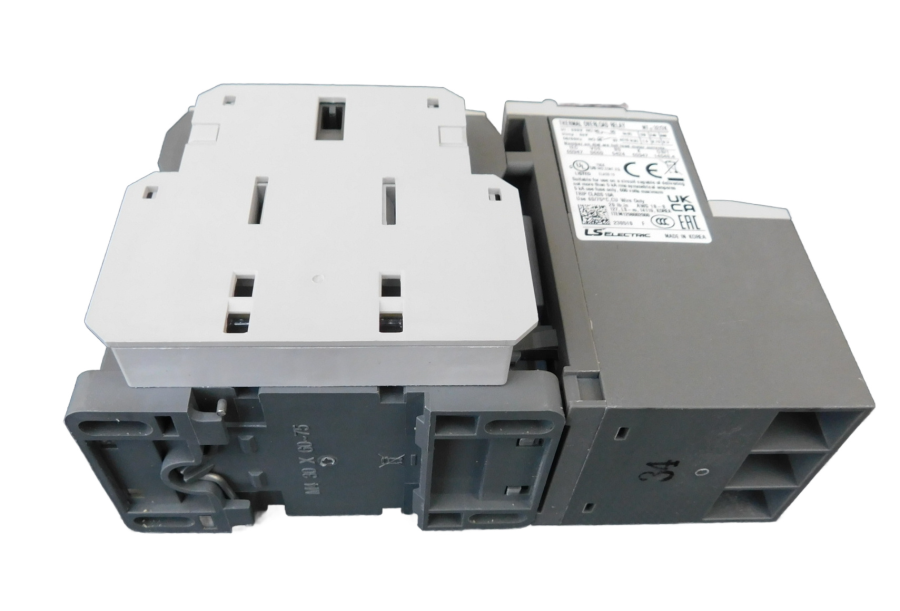

Shipped as two separate devices, contactor and overload.
LSis brand, made in Korea

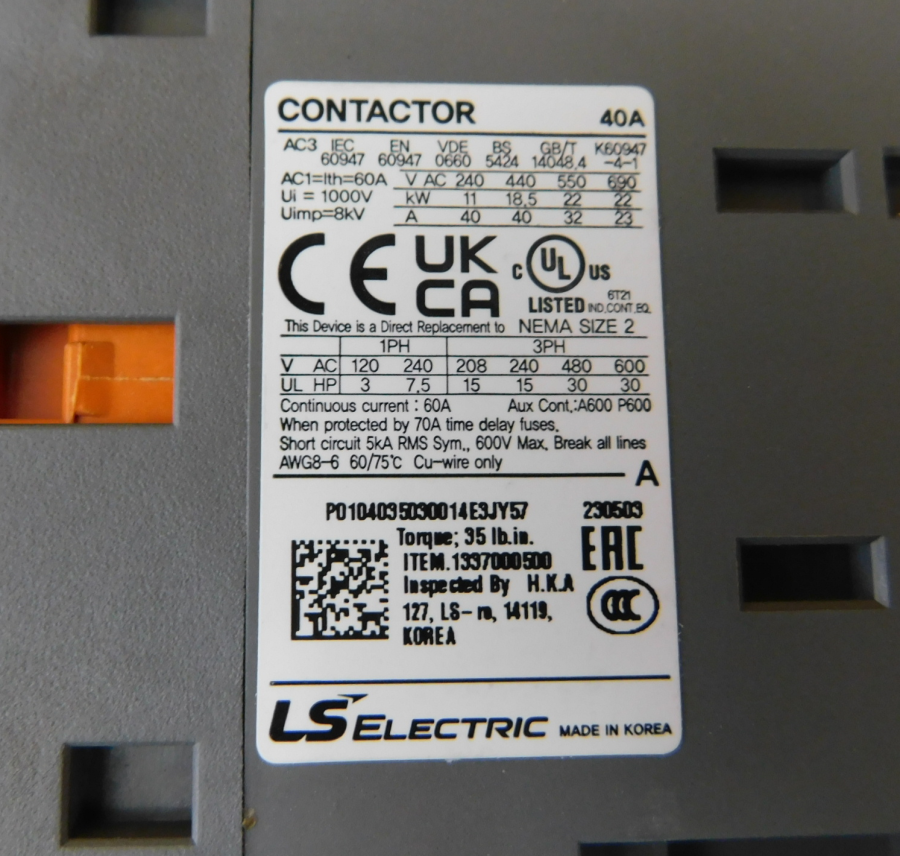

- Contactor - Nema size 2, IEC size 40
- Overload - Class 10 differential type, phase failure protection
- Coil - 120V
- Contactor HP rating UL - 15HP @ 208V-240V, 3PH
- Overload trip range - 22-32 Amps
- Sized for Normal or Heavy loaded 10HP 230V, 3PH
- Includes (1) N/O & (1) N/C auxiliary contact
- Overload Frame size 32
