Motor Starter, 18-25 Amp, 120V Coil, 7.5HP at 230V, 3PH, IEC Size 32

Complete motor starter sized for a Normal or Heavy loaded 7.5HP at 230V or Normal loaded 7.5HP at 208V, 3PH. Operating Voltage is 120VAC.

The pictures may show a unit slightly different than the specifications. Use the specifications - not the pictures.

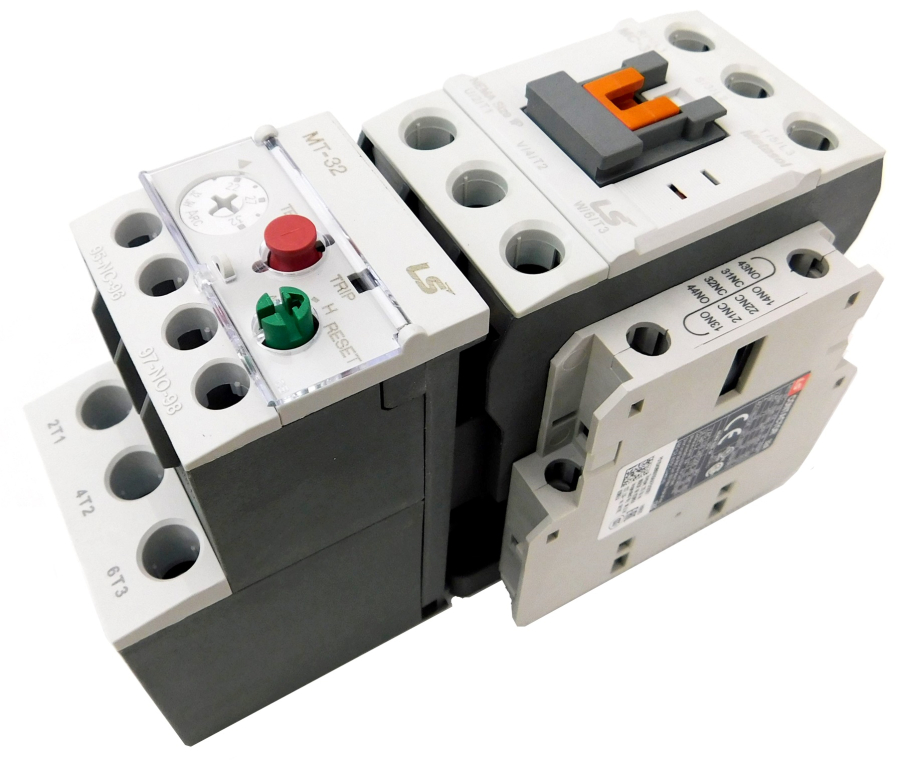

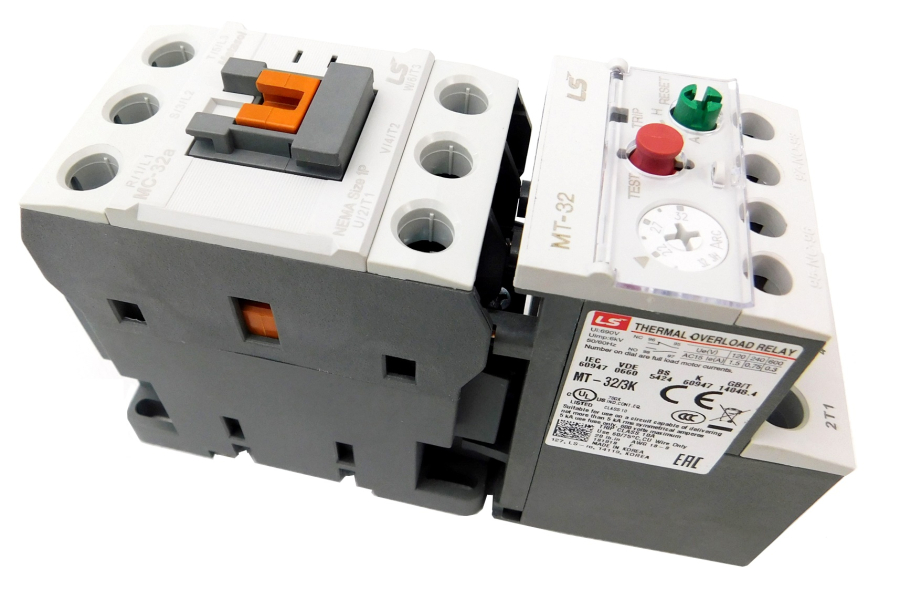

Shipped as two separate devices, contactor and overload.

LSis brand, made in Korea

• Contactor IEC size 32
• Overload - Class 10 differential type, phase failure protection
• Coil - 120V
• Contactor HP rating UL - 7.5HP @ 208V, 10HP @ 230V, 3PH
• Overload trip range - 18-25 Amps
• Sized for Normal or Heavy loaded 7.5HP at 230V or Normal loaded 7.5HP at 208V, 3PH
• Includes (1) N/O & (1) N/C auxiliary contact
• Overload Frame size 32
